Back Plunger Type Dial Gauges

Dimension

Back Plunger Type Dial Gauges

0.01mm

  • The back plunger dial gauge is characterized with easy handling since the spindle having the contact point moves in the direction perpendicular to the dial face and the gauge is more compact.
  • The dial gauge of this type is convenient for use in achieving a parallelism of the table of the machine tool, with measuring jigs, in restricted areas and on locations where scale reading is difficult.

Model

196A

Graduation

0.01mm

Range

5mm

  • Stem Ø6.35mm
  • Contact point ( X-1 )

Model

196A-6

Graduation

0.01mm

Range

5mm

  • Stem Ø6mm
  • Contact point ( X-1 )

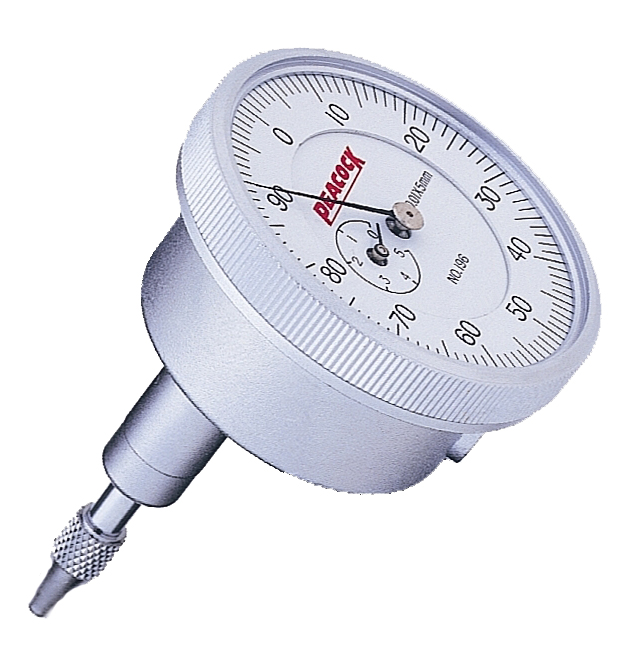

Model

196B

Graduation

0.01mm

Range

5mm

  • Stem Ø8mm
  • Contact point ( X-112 )

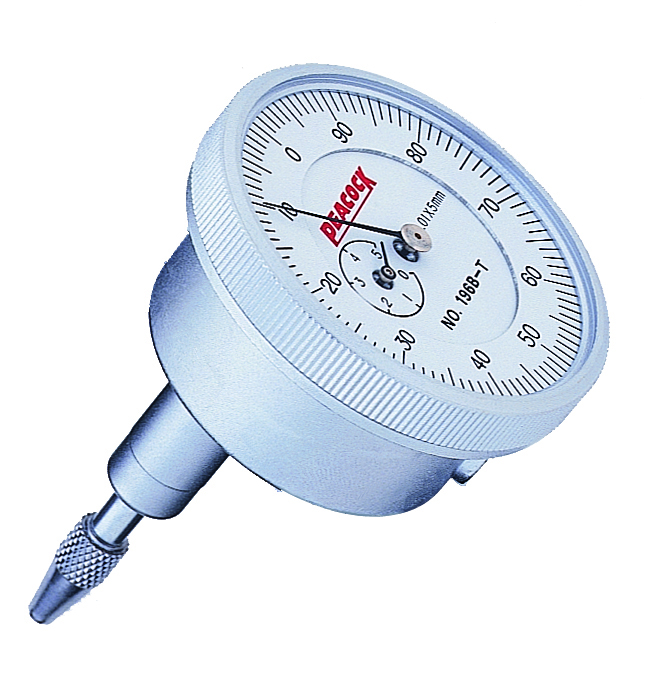

Model

196B-T

Graduation

0.01mm

Range

5mm

  • Stem Ø8mm
  • Reversed dial
  • Contact point ( X-112 )
