Long Travel Dial Gauges

Dimension

Long Travel Dial Gauges

0.01mm, 0.05mm, and 0.1mm

Dial Gauges are widely used manufacturing plants.
	The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
	The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
	The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
	The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model	207
Graduation	0.01mm
Range	20mm

Lug back

Model	207F-T
Graduation	0.01mm
Range	20mm

Reversed dial
Flat back

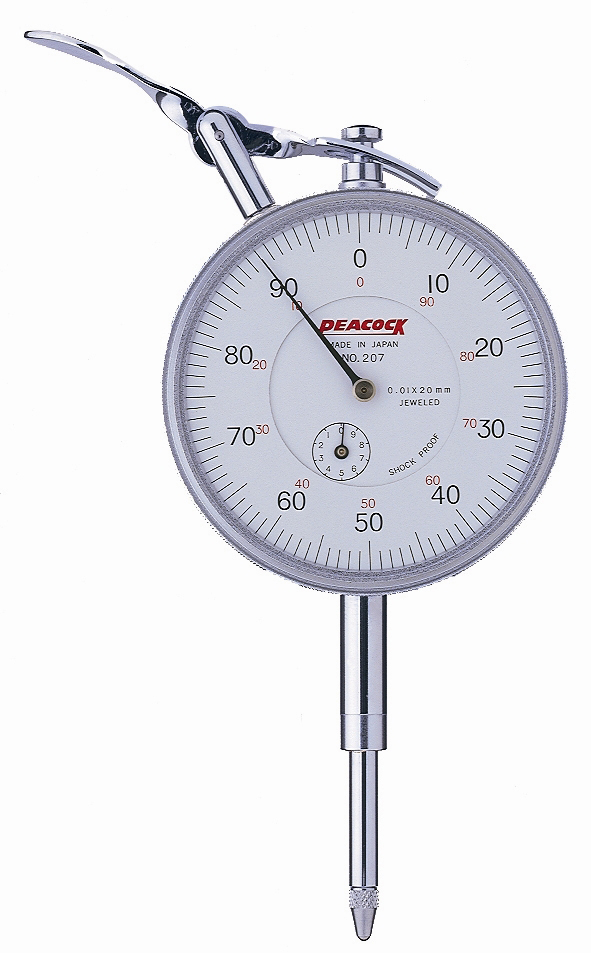

Model	207F-PL
Graduation	0.01mm
Range	20mm

Pump type spindle lifting lever
Flat back

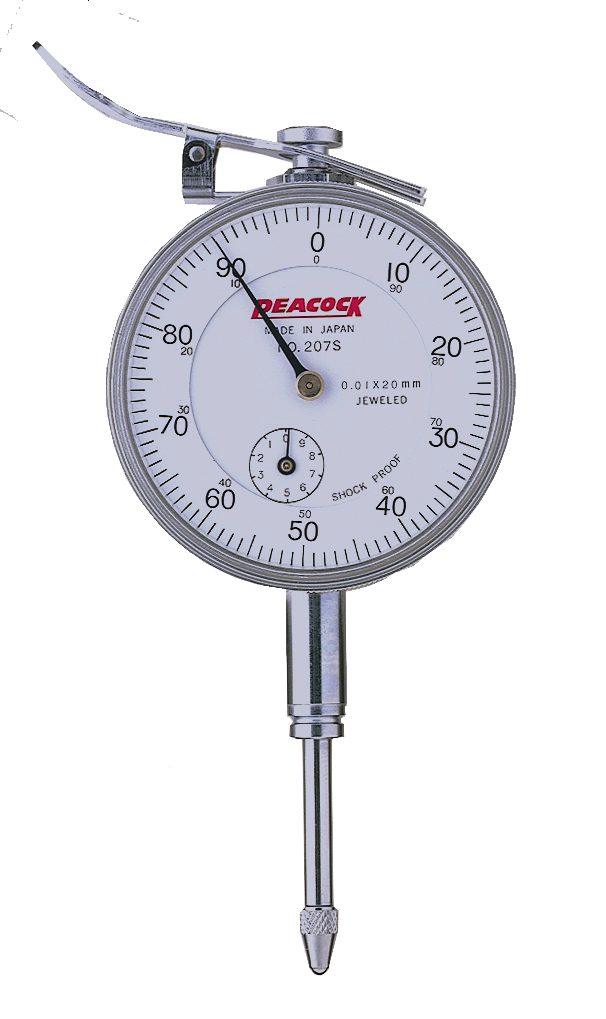

Model	207S-LL
Graduation	0.01mm
Range	20mm

Spindle lifting lever ( LL-1 )
Small dial face type ( Ø53mm )
Lug back

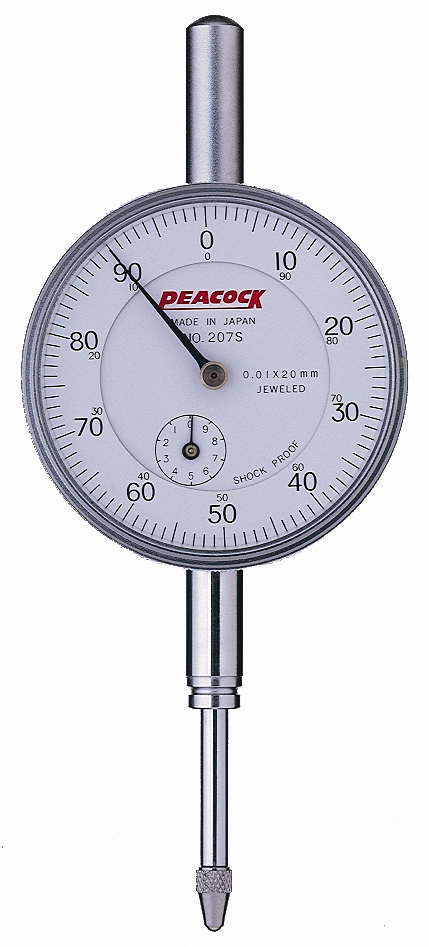

Model	207S
Graduation	0.01mm
Range	20mm

Small dial face type ( Ø53mm )
Lug bac

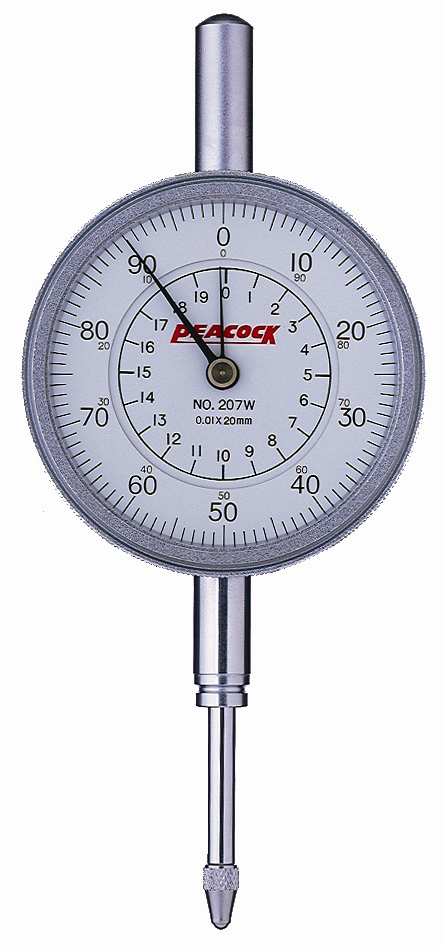

Model	207W
Graduation	0.01mm
Range	20mm

Two center pointers (The hand is long enough to facilitate easy reading of measured values.)
Lug back

Model	207WF-T
Graduation	0.01mm
Range	20mm

Two center pointers
(The hand is long enough to facilitate easy reading of
measured values.)
Reversed dial
Flat back

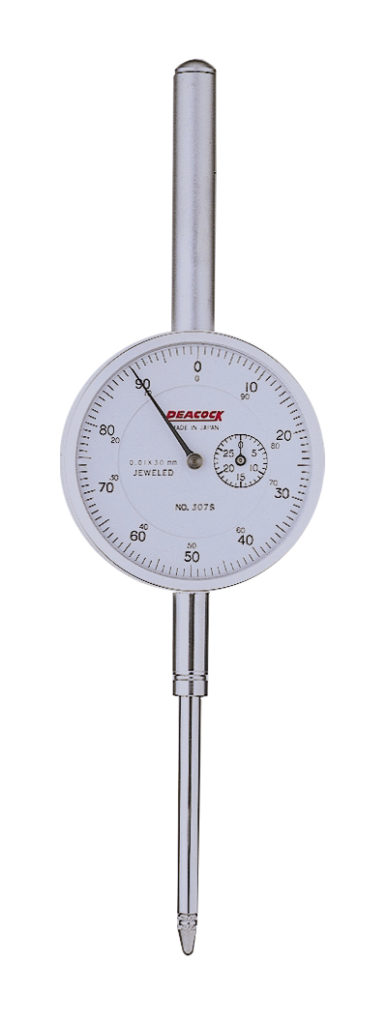

Model	307S
Graduation	0.01mm
Range	30mm

Small dial face type( Ø57mm )
Contact point ( X-2 )
Lug back

Model	507
Graduation	0.01mm
Range	50mm

Lug back
Stem Ø10mm

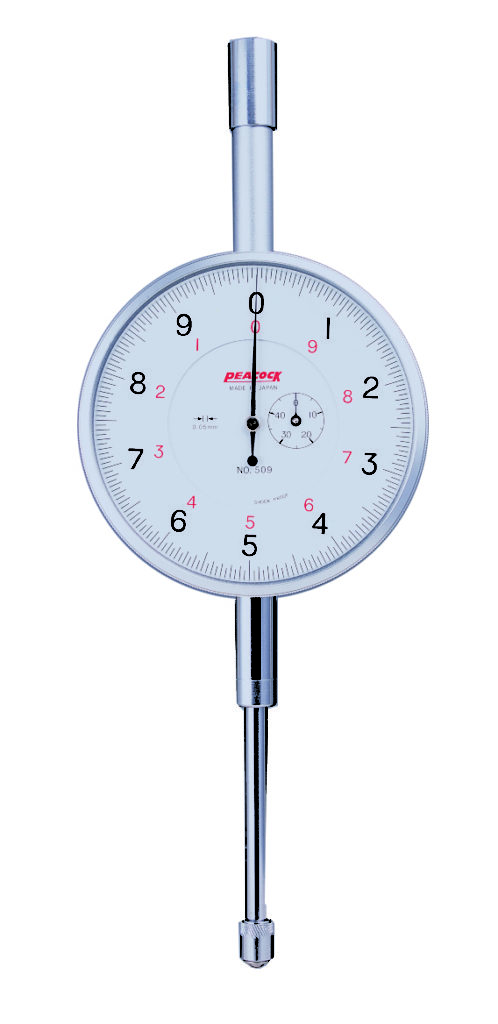

Model	509
Graduation	0.05mm
Range	50mm

Lug back
Stem Ø10mm

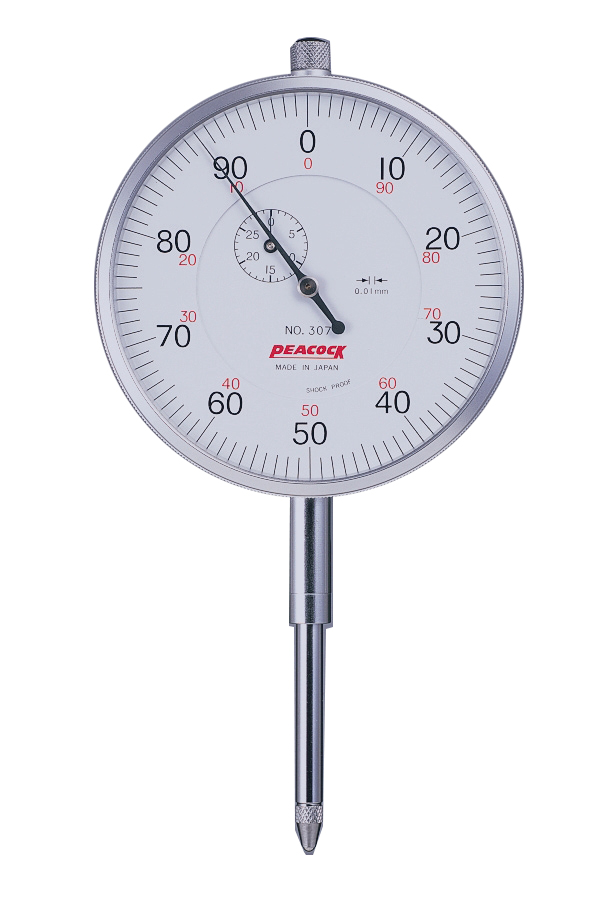

Model	307
Graduation	0.01mm
Range	30mm

Lug back
Stem Ø8mm

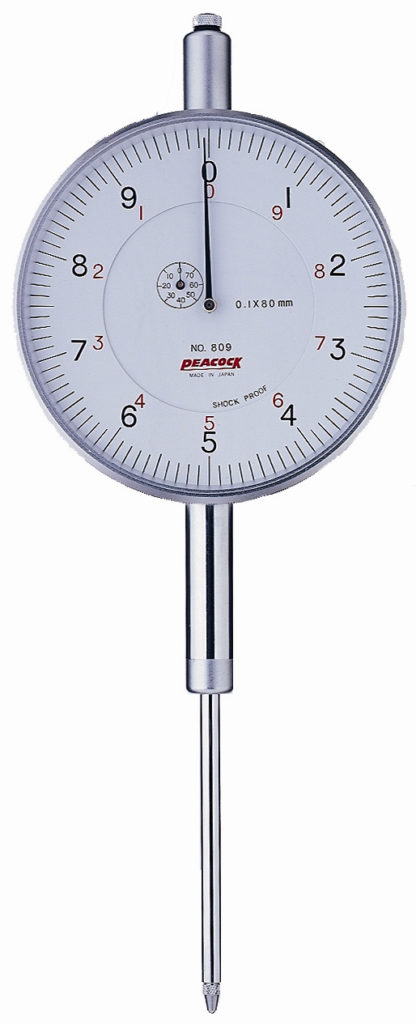

Model	809
Graduation	0.1mm
Range	80mm

Lug back
Stem Ø14mm
