Standard Dial Gauges

Dimension

Standard Dial Gauges

0.001mm and 0.005mm

Dial Gauge widely used manufacturing plants.
	The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
	The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
	The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are water-proof and dust-proof in construction.
	The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model	5B-HG High Precision Type
Graduation	0.001mm
Range	1mm

Indication error ±3µm
Retrace error 2µm
Includes accuracy certification
Lug back

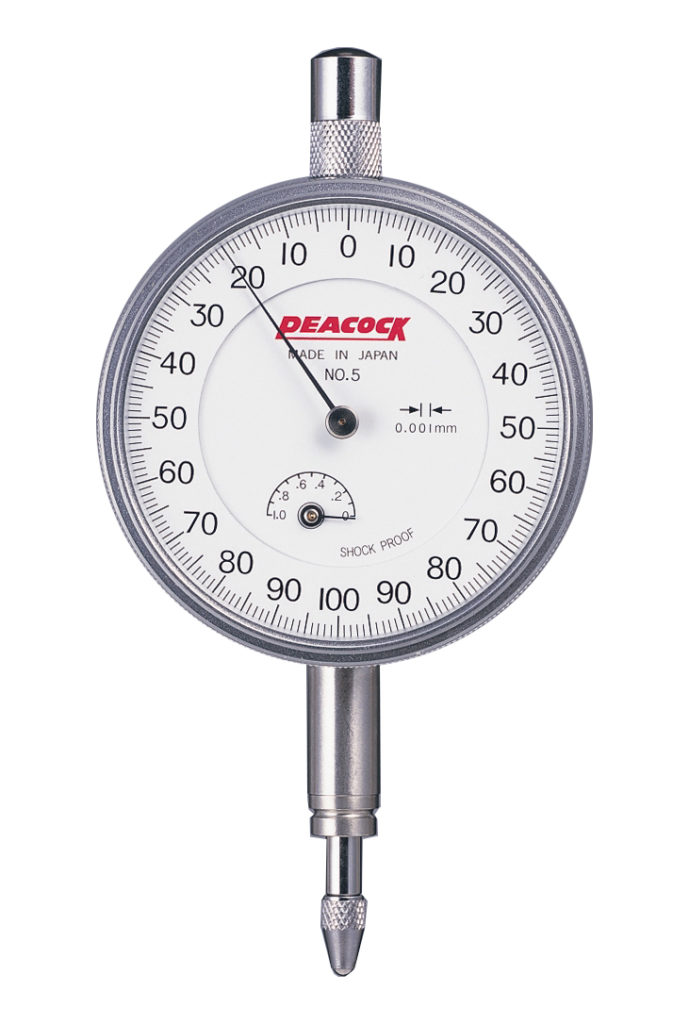

Model	5B
Graduation	0.001mm
Range	1mm

Lug back

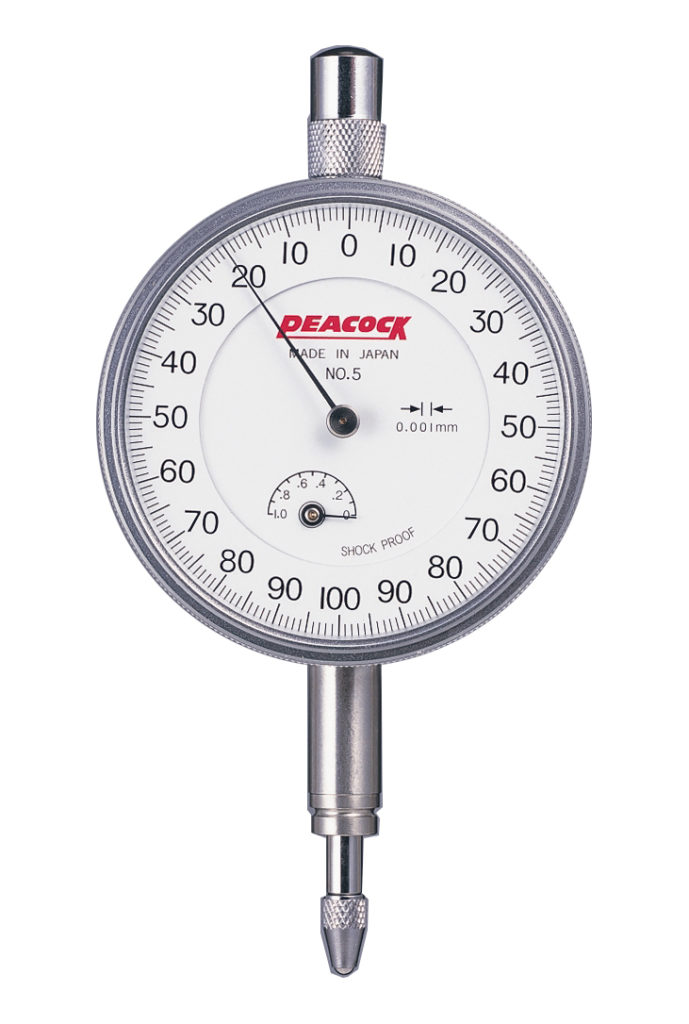

Model	5F
Graduation	0.001mm
Range	1mm

Flat back

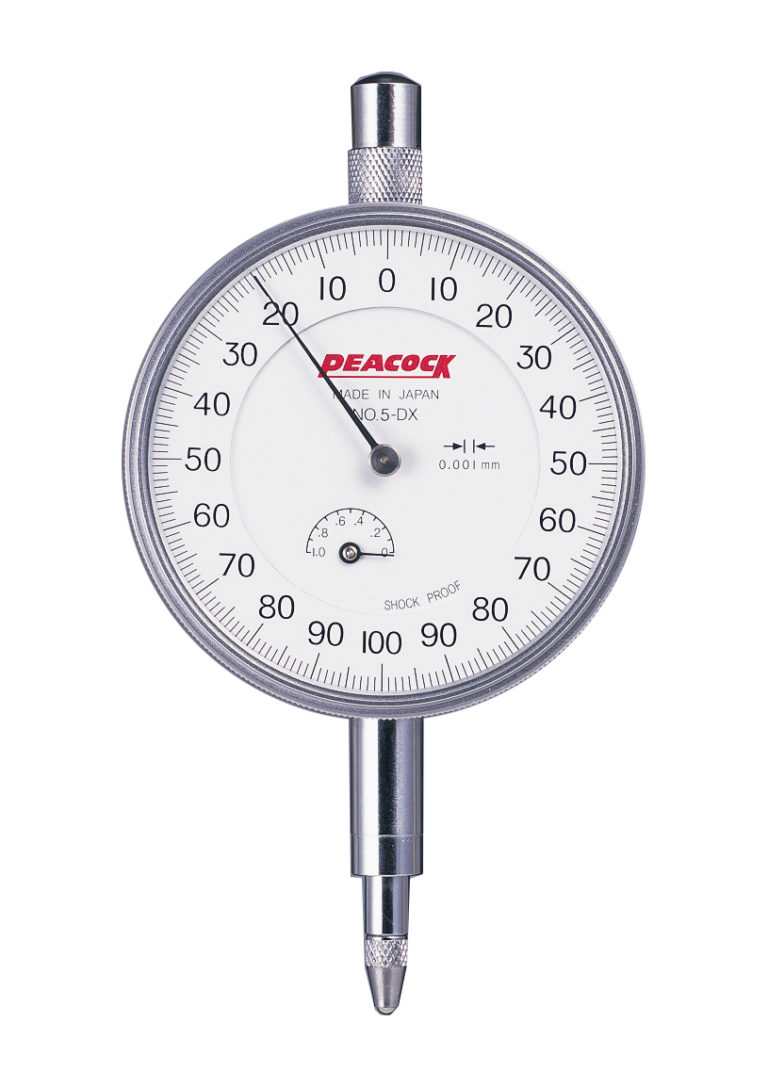

Model	5-DX
Graduation	0.001mm
Range	1mm

Durable type (Spindle Ø5mm)
Lug back

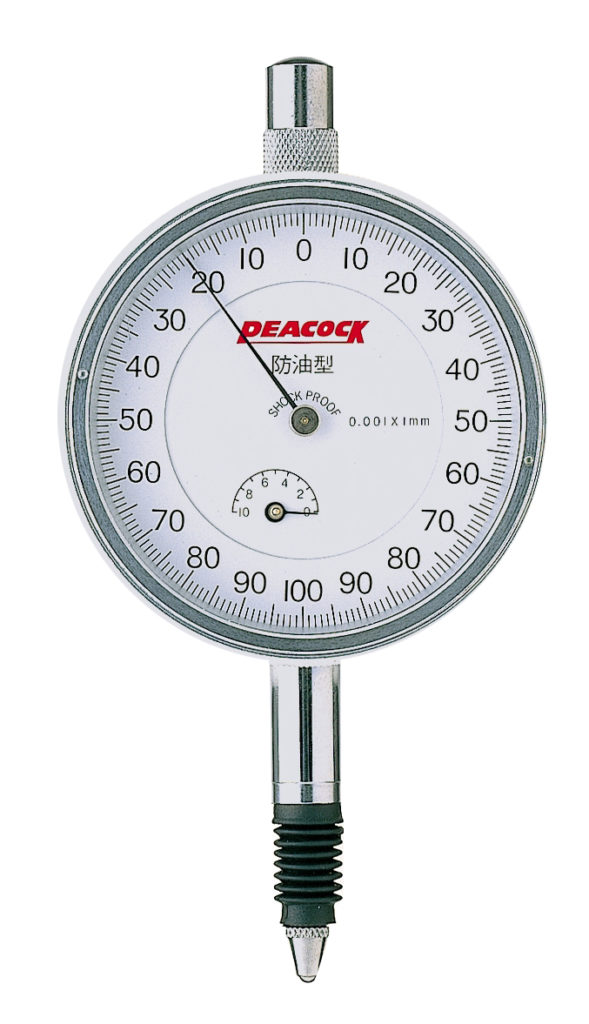

Model	5-SWF
Graduation	0.001mm
Range	1mm

Oil-proof type
Contact point ( X-2A )
Lug back

Model	25
Graduation	0.001mm
Range	2mm

Lug back

Model	25S
Graduation	0.001mm
Range	2mm

Small dial face type ( Ø55.7mm )
Lug back

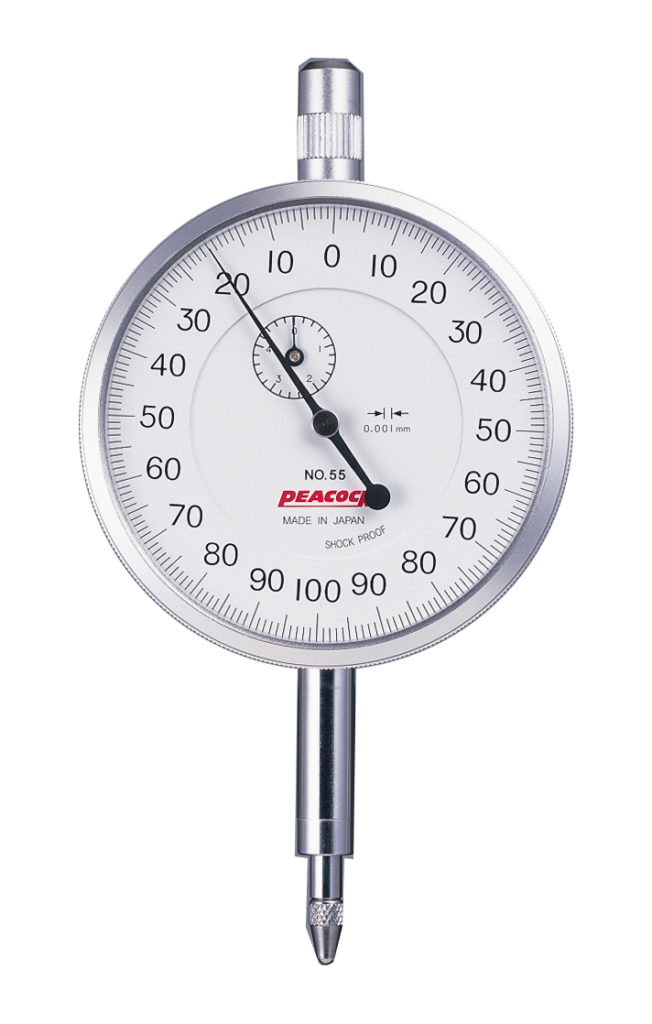

Model	55
Graduation	0.001mm
Range	5mm

Lug back

Model	55-DX
Graduation	0.001mm
Range	5mm

Small dial face type ( Ø57mm )
Lug back

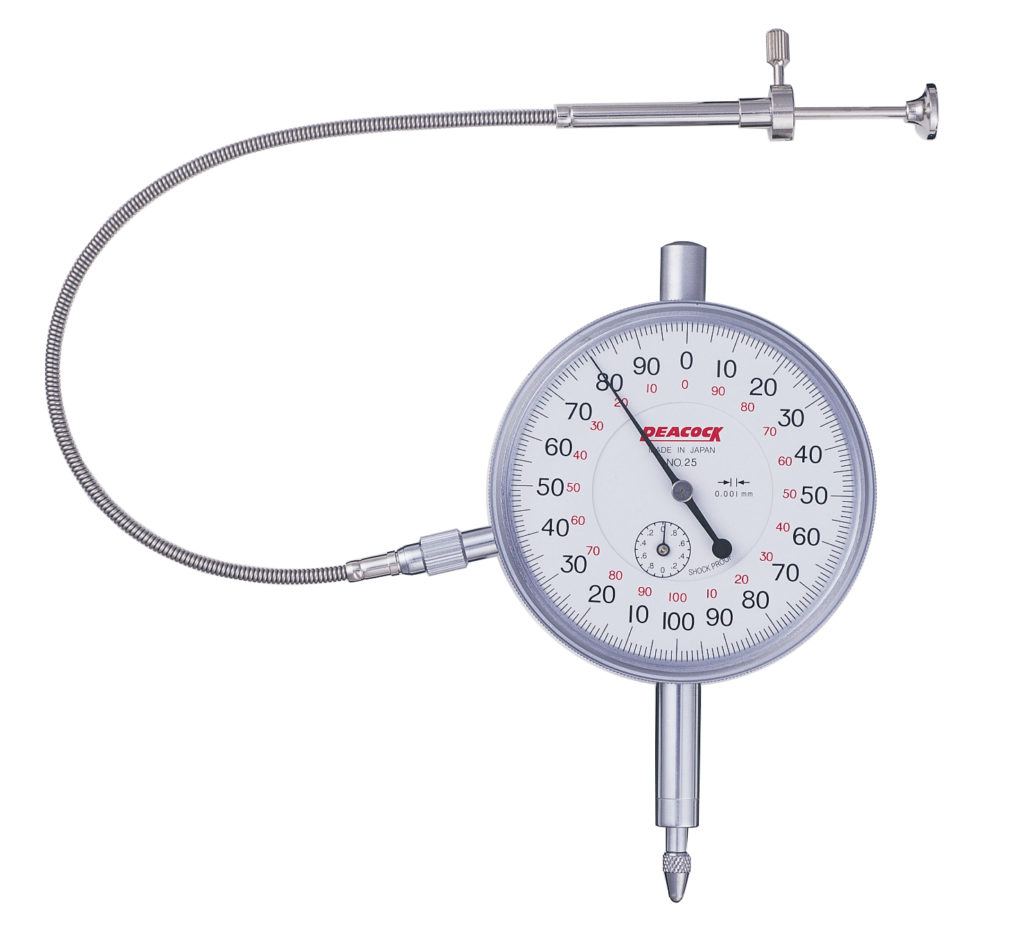

Model	25F-RE
Graduation	0.001mm
Range	2mm

Equipped spindle pull-up release ( RE-2 ) 280mm long
Flat back

0.01mm

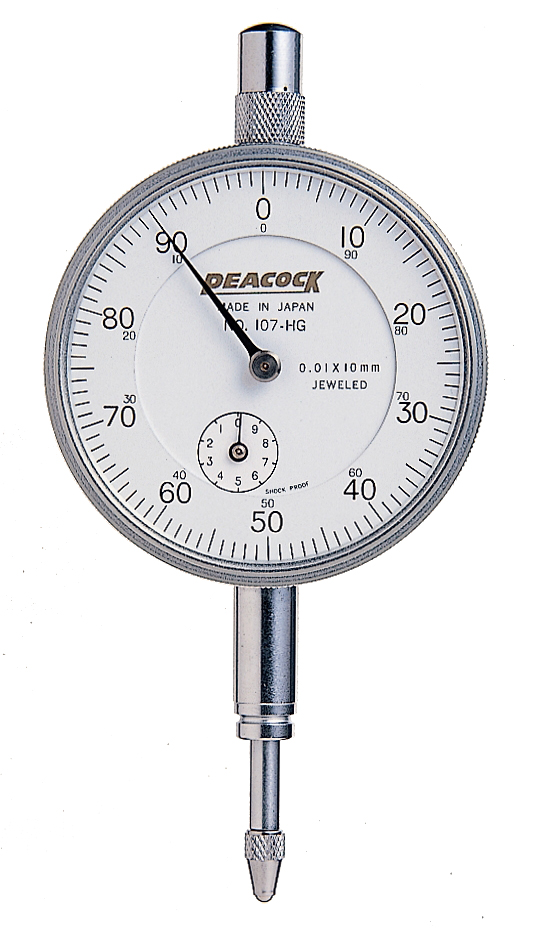

Model	107-HG High Precision Type
Graduation	0.01mm
Range	10mm

Indication error ±10µm
Retrace error 4µm
Includes accuracy certification
Lug back

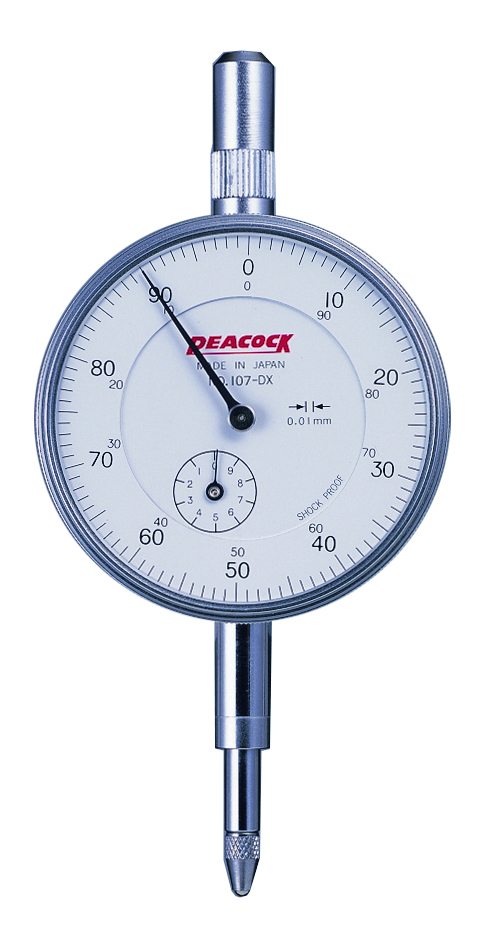

Model	107-DX
Graduation	0.01mm
Range	10mm

Durable type ( Spindle Ø5mm )
Lug back

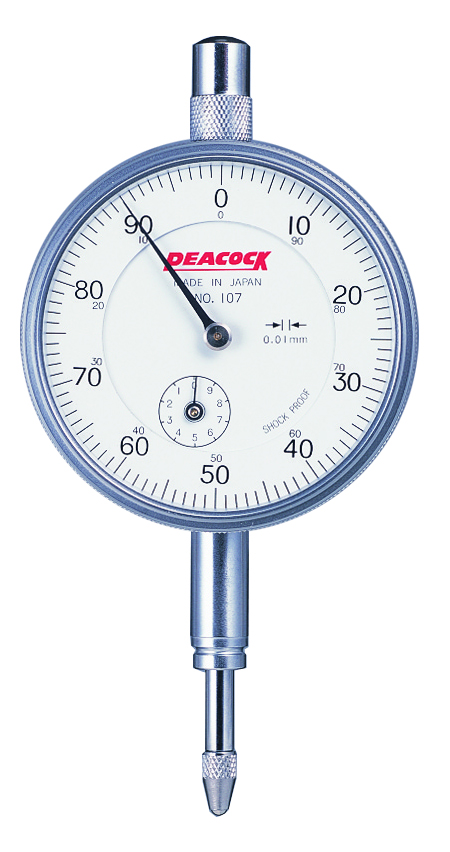

Model	107
Graduation	0.01mm
Range	10mm

Lug back

Model	107F
Graduation	0.01mm
Range	10mm

Flat back

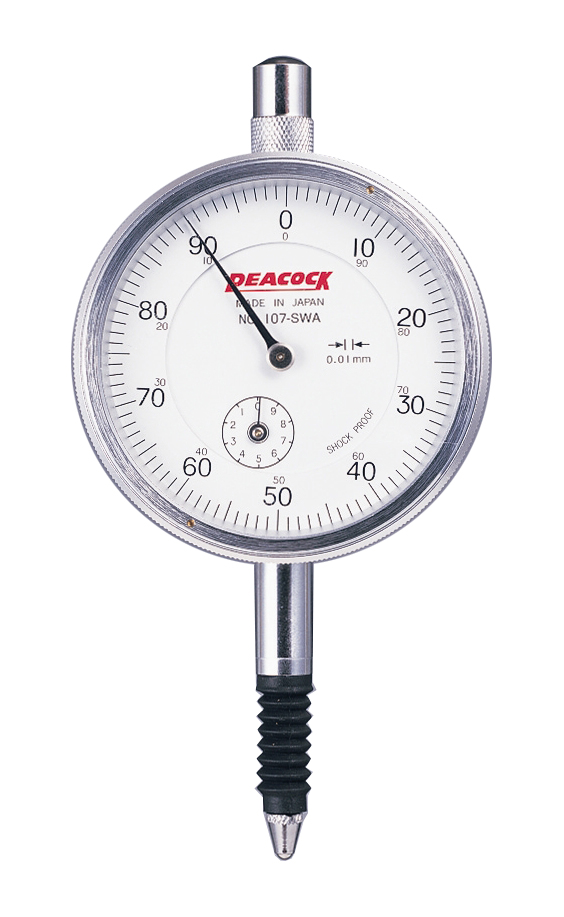

Model	107-SWA
Graduation	0.01mm
Range	10mm

Oil-proof type
Flat crystal
Contact point ( X-2A )
Lug back

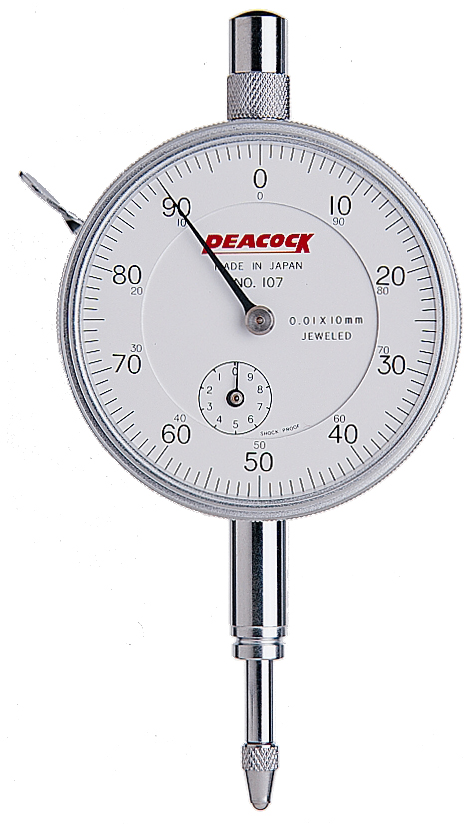

Model	107-BL
Graduation	0.01mm
Range	10mm

Spindle pull-up back lever
Lug back

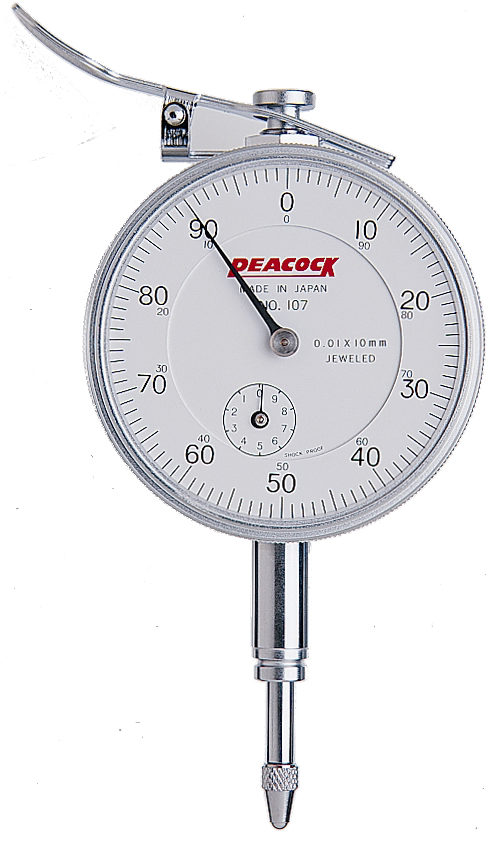

Model	107-LL
Graduation	0.01mm
Range	10mm

Spindle lifting lever ( LL-1 )
Lug back

Model	107F-RE
Graduation	0.01mm
Range	10mm

Spindle pull-up release
( RE-1 ) 280 mm long
Flat back

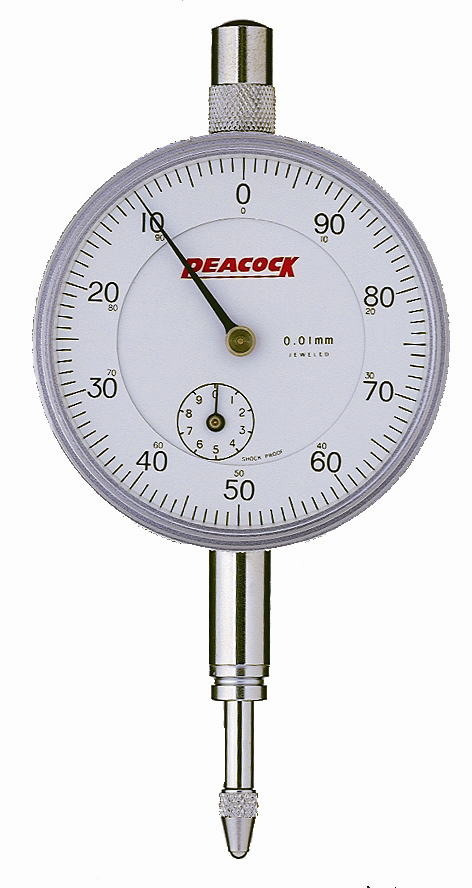

Model	107F-T
Graduation	0.01mm
Range	10mm

Reversed dial
Flat back

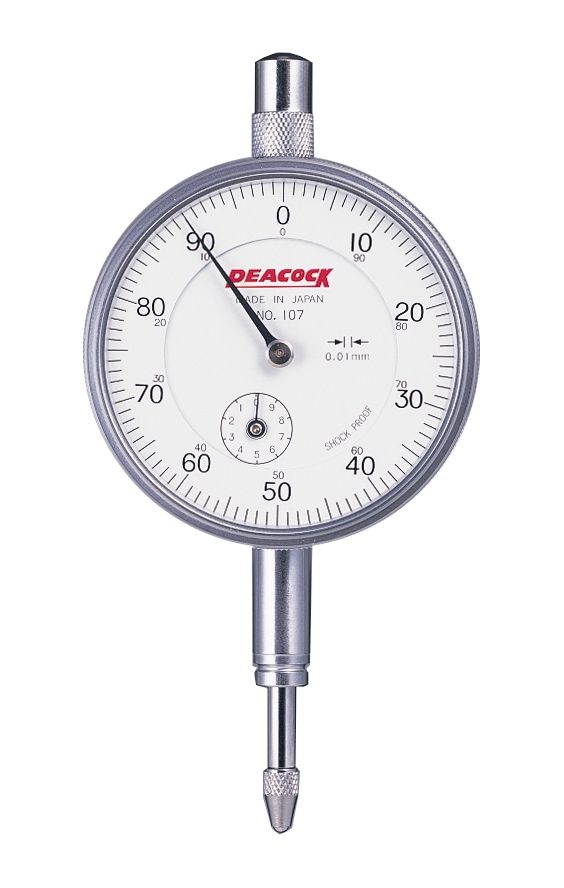

Model	107-E
Graduation	0.01mm
Range	10mm

Low-measuring force
( initial pressure 0.4N )
Lug back

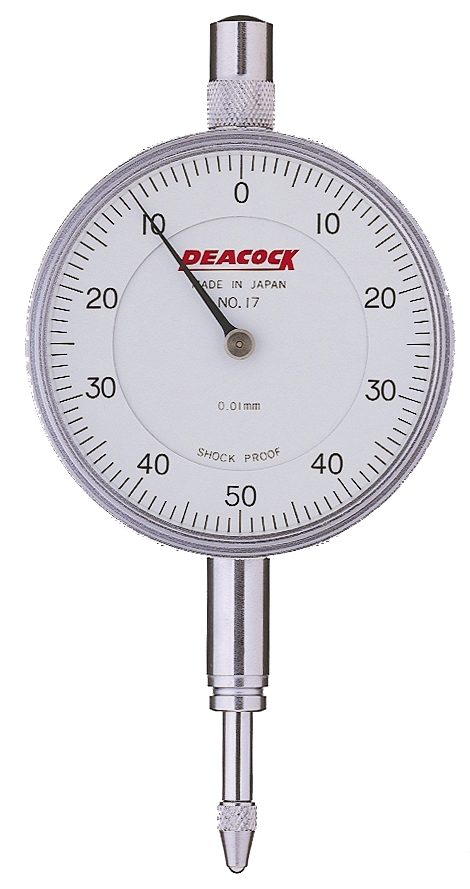

Model	17
Graduation	0.01mm
Range	1mm

Balanced dial
Lug back

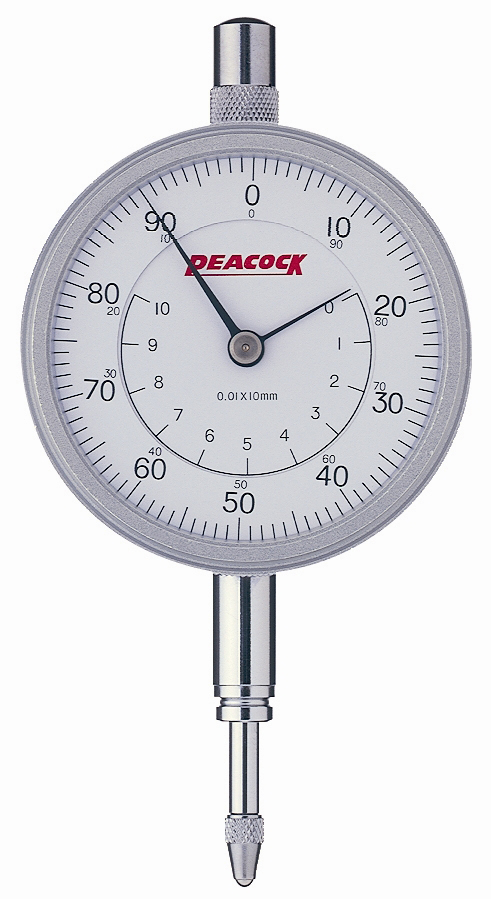

Model	107W
Graduation	0.01mm
Range	10mm

Tow center pointers
  (The hand is long enough to
  facilitate easy reading of
  measured values.)
Lug back

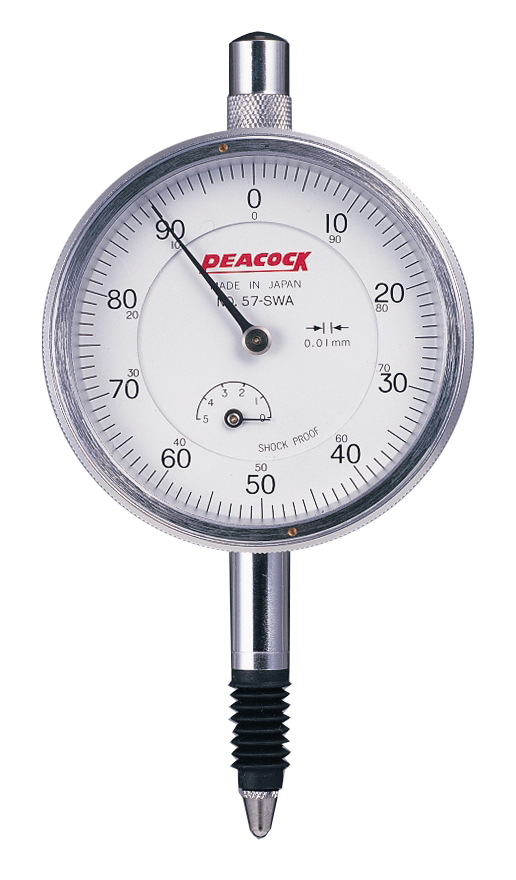

Model	57-SWA
Graduation	0.01mm
Range	5mm

Oil-proof type
Flat crystal
Contact point ( X-2 )
Lug back

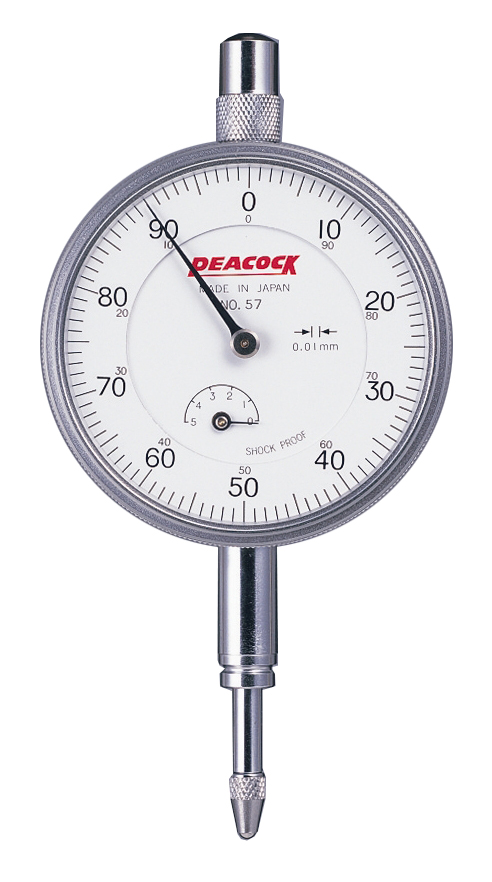

Model	57
Graduation	0.01mm
Range	5mm

Lug back

Model	57F
Graduation	0.01mm
Range	5mm

Flat back

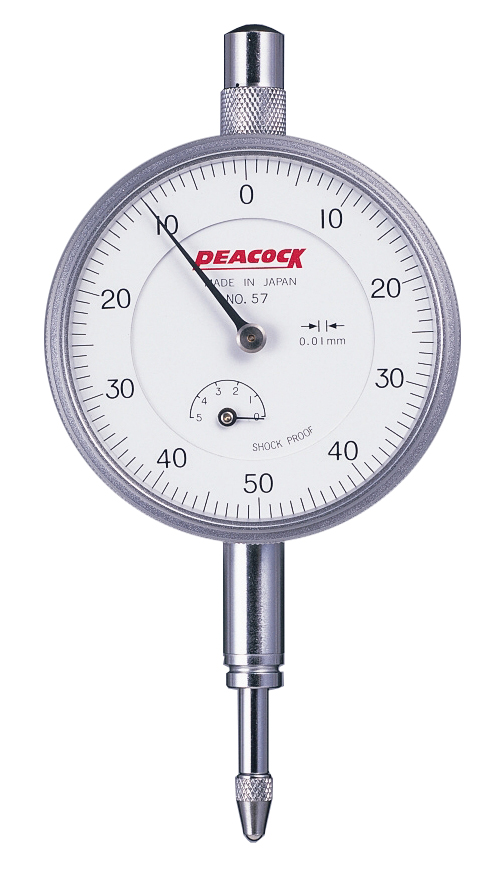

Model	57B
Graduation	0.01mm
Range	5mm

Balanced dial
Flat back
